RGBlink mini-Edge SDI,All in One Pro Live Streaming Multi-Camera Video Mixer Swi…

Price: $999.00 - $899.00
(as of Jun 25, 2026 23:35:28 UTC – Details)

Product description

The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked. RGBlink mini-edge SDI live streaming equipment

mini-edge SDI 10Channel all-in-one Video Mixer Switcher

1 Broadcast SDI input

2 Pro Level Audio

3 Pro Level Video

4 Live stream anywhere

record and play

1 Transition like a Pro

2 One-click Chroma Key

3 Pro Stream via TAO cloud

4 Livestreaming&Recording

5

1 mini edge SDI packing

2 Multi-Cam Live Streaming

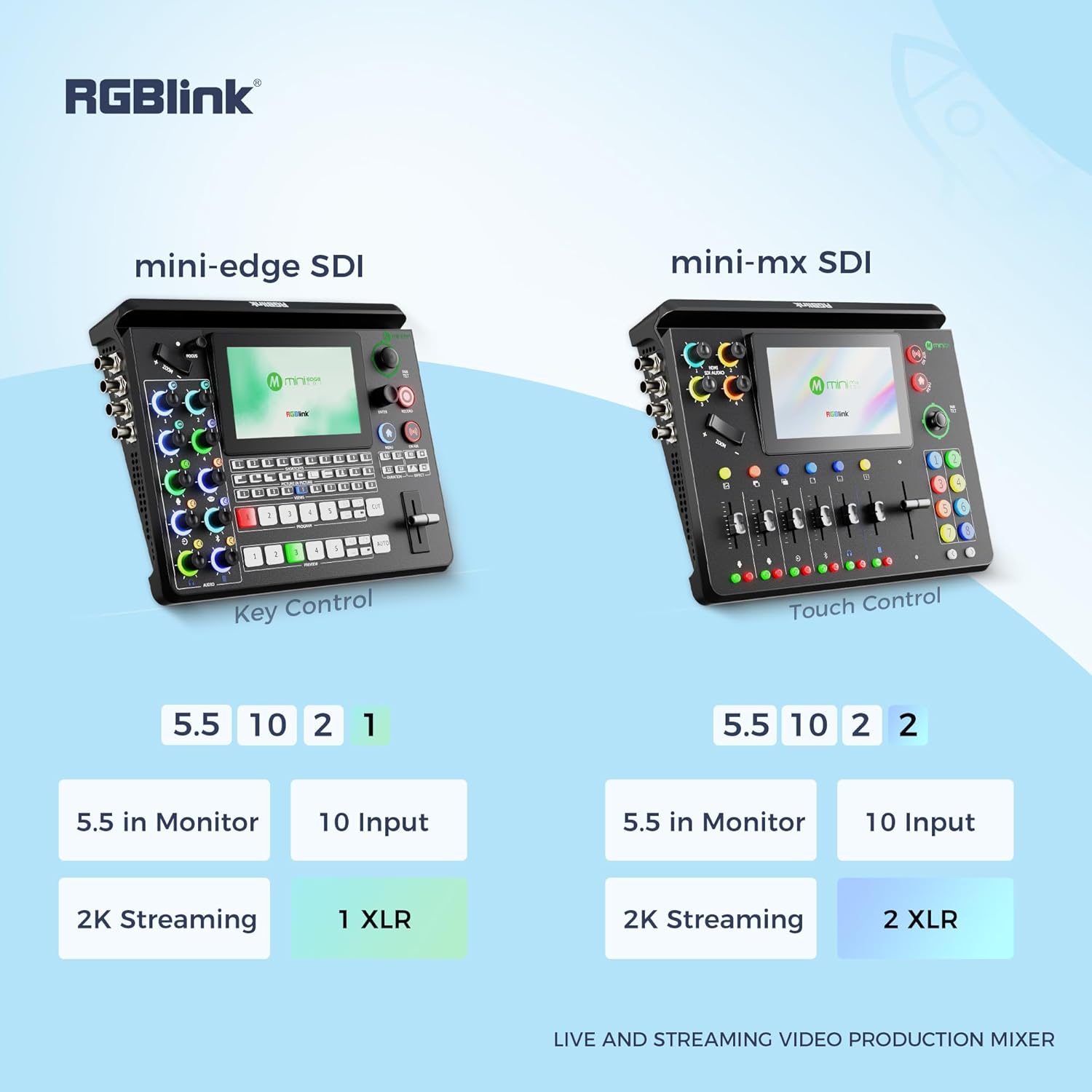

3 miniedge SDI v minimx SDI

4 How to set PTZ control

5 Upgrade

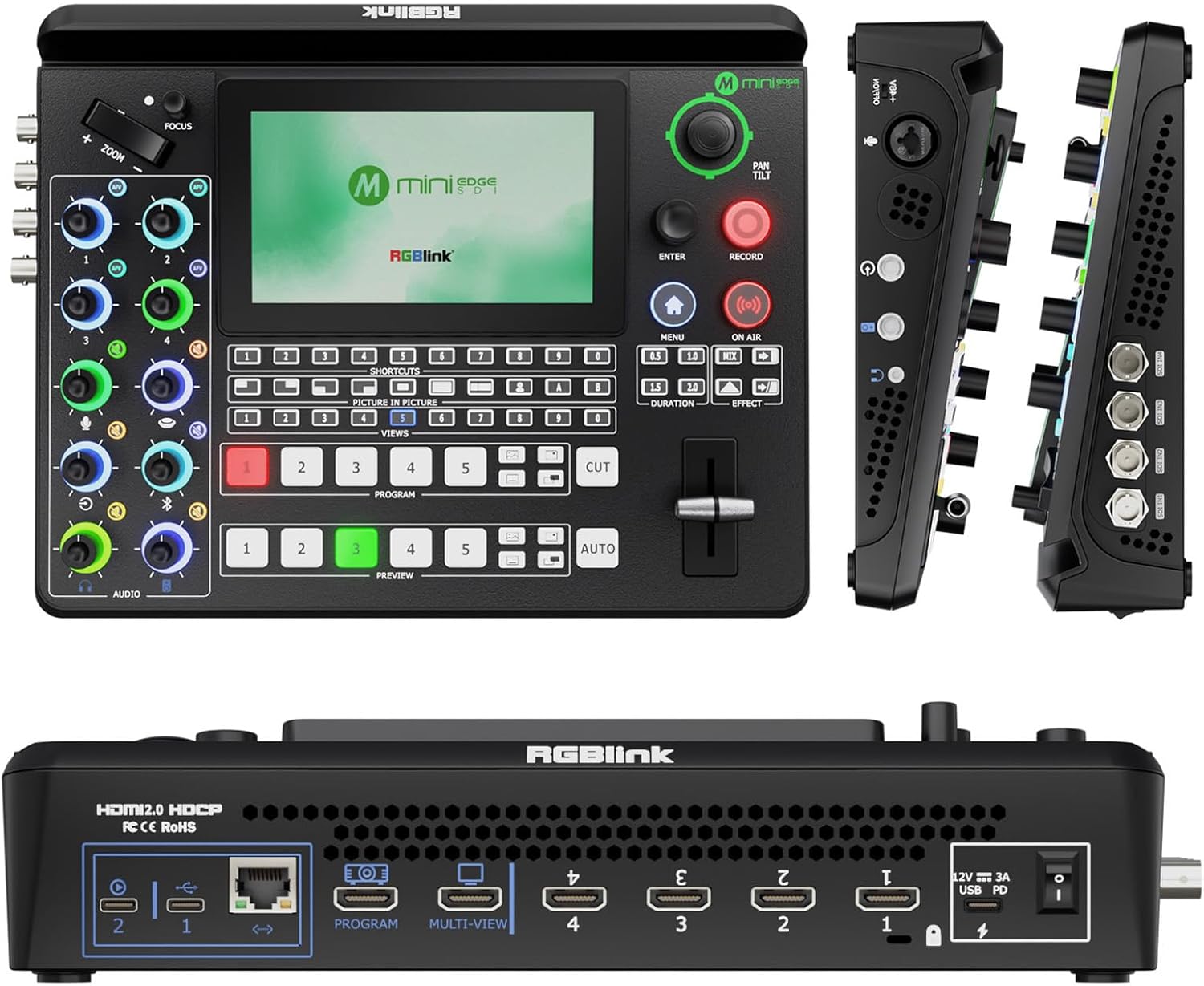

Input 4*HDMI-A | 4* 3G SDI | 1*NDI | 1*USB-C(Webcam) Output 2*HDMI-A | 1*USB-C(Record) | 1*USB-C (Record)|1*NDI Audio MIC IN 1-1*6.35mm XLR+TS Jack( 48V phantom power) | MIC IN 2- 1*6.35mm TRS Jack | Out-1*6.35mm TRS Jack & 1*3.5mm mini-Jack Communication LAN- 1*RJ45 Input Resolution HDMI-1280 × 720@50/59.94/60 | 1024 × 768@60 | 1280 × 768@60 | 1280 × 800@60 | 1280 × 1024@60 | 1360 × 768@60 |1366 × 768@60 | 1440 × 900@60 | 1600 × 1200@60 | 1680 × 1050@60 | 1920 × 1200@60 | 1920 × 1080i@50/59.94/60 | 1920 × 1080p@24/25/29.97/30/50/59.94/60 | 3840 × 2160p@30/50/60 | 4096×2160@30/50/60 Output Resolution HDMI/USB (Webcam)-1280 × 720@50/60 | 1920 × 1080@24/25/30/50/60 Video Video Formats-HDMI 2.0 | HDCP 2.2; Color Space-RGB 10bit; Sampling-4:4:4 YUV; Video Latency <4 frames Audio Format-HDMI:Linear PCM, 24 bits/48 kHz, 2 ch; USB-Linear PCM, 16 bits/48 kHz, 2 ch; Line in delay up to 8 frames (Notes:wireless mic too close to speaker may cause audio feedback (whistling). Keep distance to avoid noise.) Record/Storage Record Format:MP4 ; Disk Formats:FAT32(≤32 GB) | exFAT(64GB~2T) Supported Standards HDMI 2.0; USB 3.0 ; H.265 ITU-T H.265/ ISO/IEC 23008-2 Power Compatability-USB Power Delivery (PD) 3.0 ;Supported Cables-Certified USB PD Aware;Input Voltage-Type-C 12V/3.3A; Minimum Power-40W

RGBlink mini family video mixer switcher for live streaming

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

5.0 out of 5 stars 3

4.0 out of 5 stars 111

3.8 out of 5 stars 11

3.8 out of 5 stars 28

4.2 out of 5 stars 170

4.0 out of 5 stars 8

Price

$899.00$899.00

$1,299.00$1,299.00

$509.00$509.00

$295.00$295.00

$199.00$199.00

$799.00$799.00

4 * HDMI Inputs

4*4K

4*4K

4*4K

4*4K

4*2K

4*4K

4 *3G SDI Input

✔

✔

✔

✘

✘

✘

1* UVC Inputs

✔

✔

✔

✘

✘

✔

1* NDI|HX2 Inputs

✔

✔

✔

✘

✘

✘

Line In/Mic In/UAC In

1/1/1

1/2/1

1/1/1

1/1/-

1/1/-

1/1/1

1*Bluetooth Audio In

✔

✔

✘

✘

✘

✘

HDMI Outputs

2*2K

2*2K

2*2K

1*2K

1* 2K

2*2K

Touch Screen

✘

✔

✔

✔

✘

✔

PTZ Camera Controls

✔

✔

✔

✔

✘

✔

Video Layers

2

2

2

2

2

2

2*Overlay/Logo , Backgroud

✔

✔

✘

✘

✘

✔

UVC/Webcam, RTMP(S )streaming

UVC/Webcam, RTMP(S )streaming

UVC/Webcam, RTMP(S )streaming

UVC/Webcam, RTMP(S )streaming

UVC/Webcam, RTMP(S )streaming

UVC/Webcam streaming

UVC/Webcam, RTMP(S )streaming

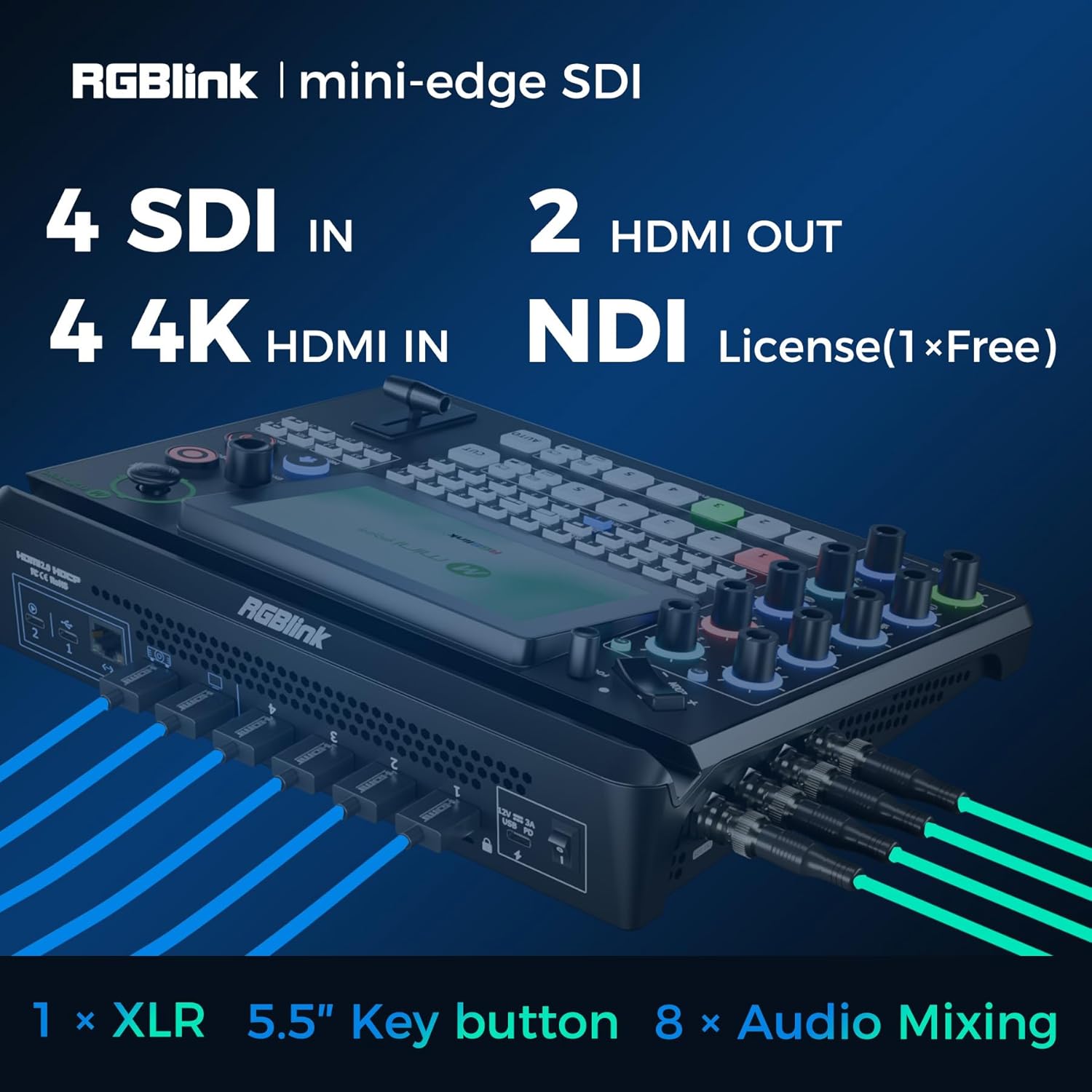

Multiple Camera SDI and HDMI Live Stream Inputs : RGBlink mini-edge SDI video switcher offers 4×4K HDMI and 4×3G SDI inputssupporting a wide range of sources from DSLRs, camcorders, to broadcast-level equipment. It also includes UVC, NDI|HX2, Line In, Mic In —your ultimate multi camera video swticher for live streaming for studios, worship houses or live events.( Note:upgrading to the NEWEST FRIMWARE version before use .see user manual)
HDMI Pro Live Streaming with Dual Outputs & UVC: This video mixer switcher features dual 2K HDMI outputs and built in UVC USB streaming to Zoom, Teams, OBS or YouTube. It supports RTMP/RTMPS and NDI|HX2 for real time live production switcher workflows,ideal as a SDI HDMI live stream switcher for churches, events and content creators.

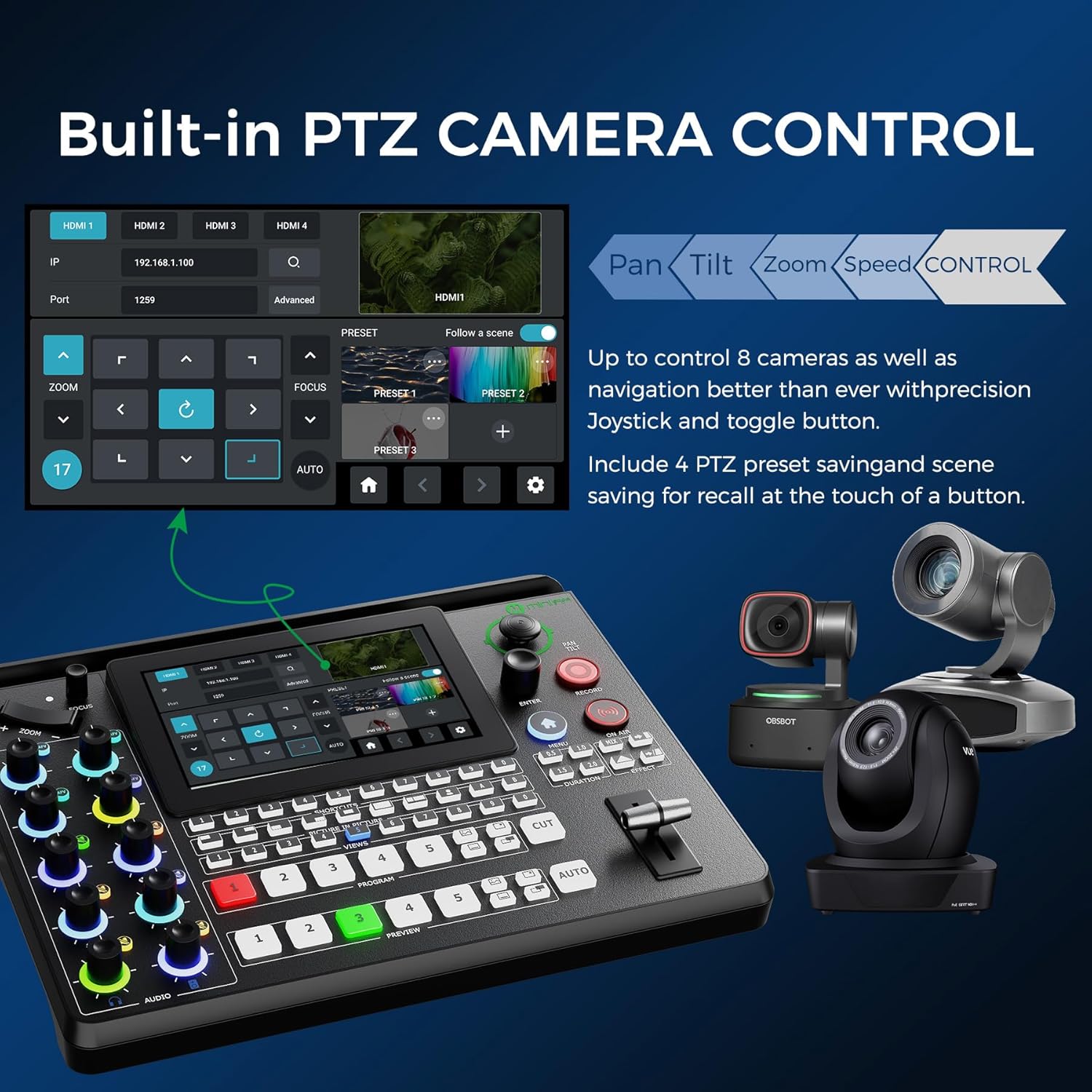

Video Switcher Mixer with PTZ Cam Control: mini-edge SDI’s integrated LAN based PTZ control enables pan, tilt, zoom and preset commands without extra software—perfect for cinematic multi angle productions in concerts, eSports or corporate broadcasts. This makes it a pro HDMI live streaming camera switcher for professional multi-camera use.

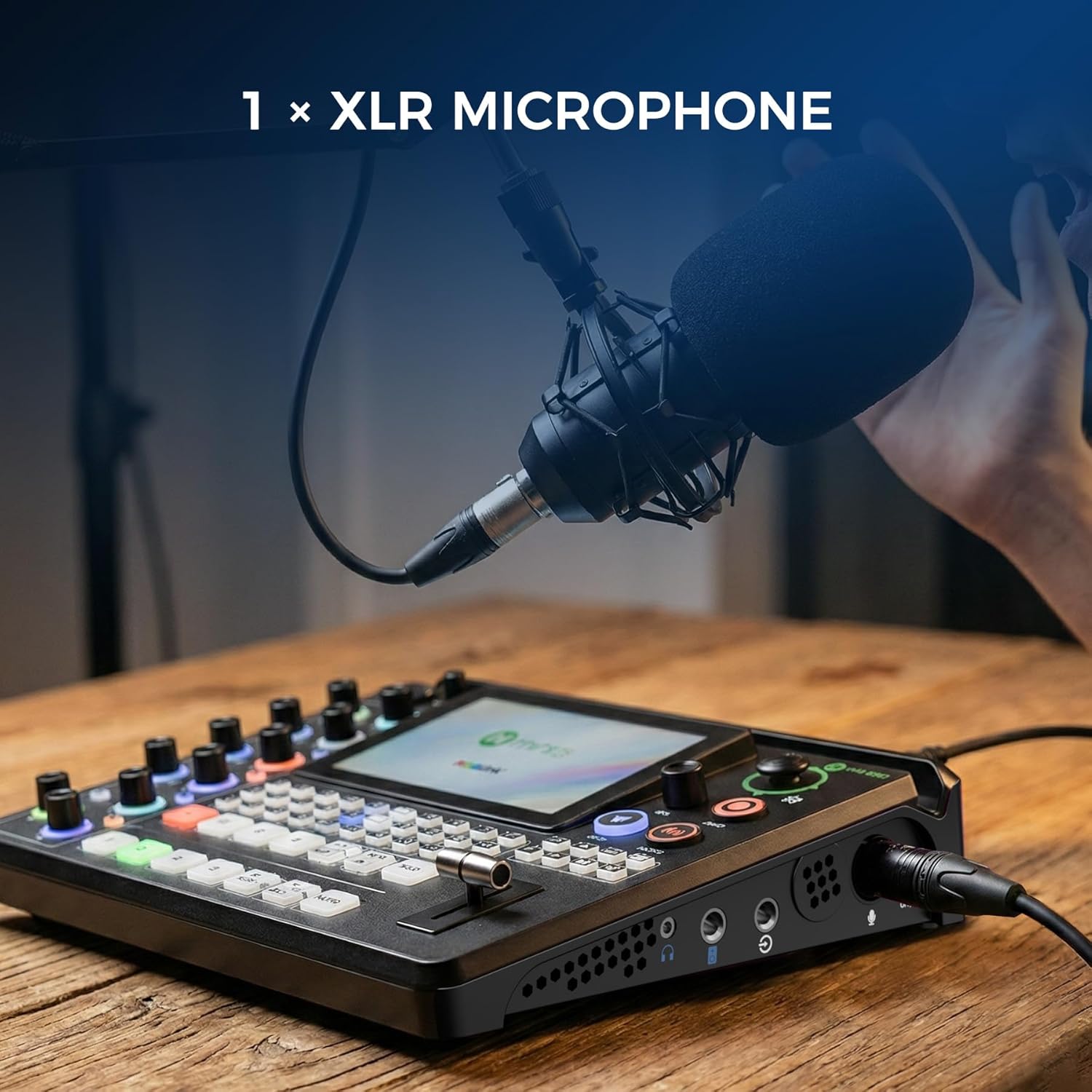

Professional Video Switcher with Audio Interface: RGBlink mini-edge SDI live streaming switcher combines Line In, Mic In, UAC and Bluetooth audio inputs with real time mixing. Seamlessly blend mics, music and live commentary—ideal for podcasts, hybrid meetings and switcher for streaming studios.where synchronized audio and video are critical.
Real Time Production Live Streaming & Remote Control: With web server , RGBlink min-edge SDI video switcher lets you switch scenes, manage overlays and monitor audio from anywhere—designed as a brocast switcher for remote production teams.Suitable for worship services, stage shows, live streaming setups and on-site corporate events.
